Layout type :High and low temperature sample separate layout

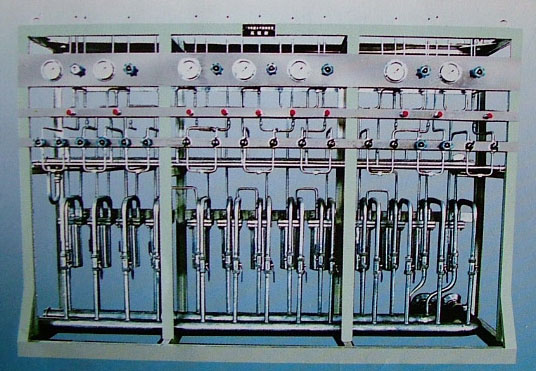

Hight-temperature rack Structure character

    At present , the structure is widely used. Because low and high temperature sample are separately located on high-temperature rack and instrument rack (the mixture of dry and wet panel). The high-temperature rack is easily isolated and thus field-working situation is improved .Cooler, pressure reducing valve and samples inlet valve and sample inlet valve, etc. are located on high-temperature rack ,Analyzers, board for grabbing sample, constant temperature device, elements for adjusting and measurement, and electric elements, etc. are located on instrument rack.

Recommend service field:
     Apply to units of different capacities with two sampling rooms.
